SYS-S4 Four-process CNC Router

SYS-S4 Four-process CNC Router

SYS-S4 Four-process CNC Router

Machine Features:

LNC system +Leadshine Servo / Multipoint Vacuum Adsorption Table / Instant Tool Changer
LNC control system realizes fast data processing rate which is easy to operate.
Fuling inverters realize instant tool changing and improve working efficiency.
Air-cooling 6KW Spindle realizes automatic tool changing and guarantee the machine stability.
Leadshine 1.5KW servo motor with large torque and fast speed.
Automatic tool setting makes the high precision of machine and easy operation for users.

Specification:
Model SYS-S4
Working area 1300*2800*200mm
Spindle power CC air-cooling 6KW*4
Inverter Fuling inverter 7.5KW
Drive system LeadShine
Control system MW2200 LNC MW2200
Max no load speed 80m/min
Max working speed 25m/min
Reposition accuracy ±0.01mm
Vacuum pump 7.5KW
Table structure Vacuum Absorption
Rail 台湾龙玛
Max Tool Holder Dia Φ12.7mm
Dust Collector 5.5KW
Air Pressure 0.6-0.8Mpa
Working Voltage AC380V/3PH/50Hz
Oil System Automatic Oil Injection System
Weight 3500KG

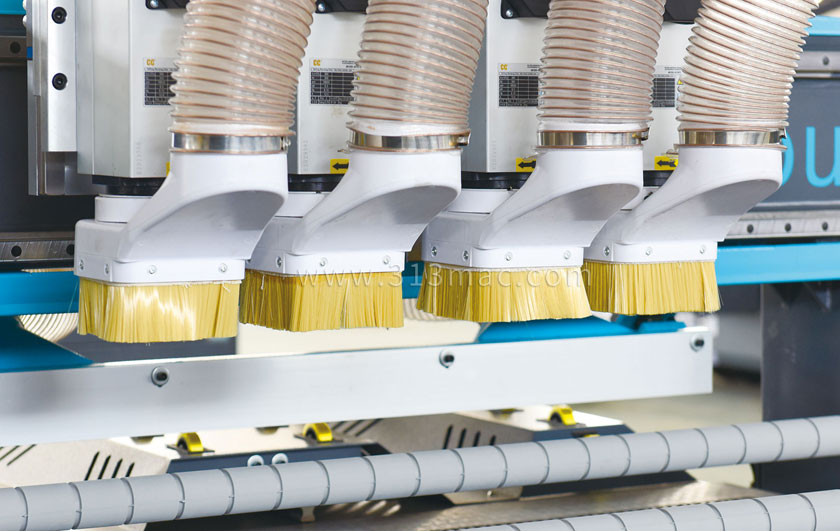

Air-cooling 6kw Spindle

Air-cooling 6kw Spindle

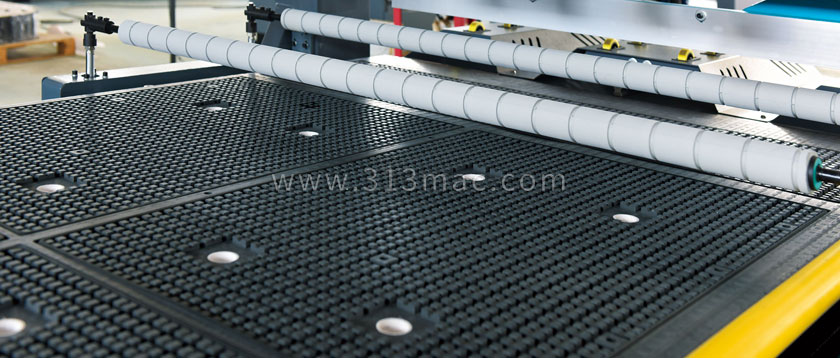

Multipoint Vacuum Adsorption Table

Multipoint Vacuum Adsorption Table

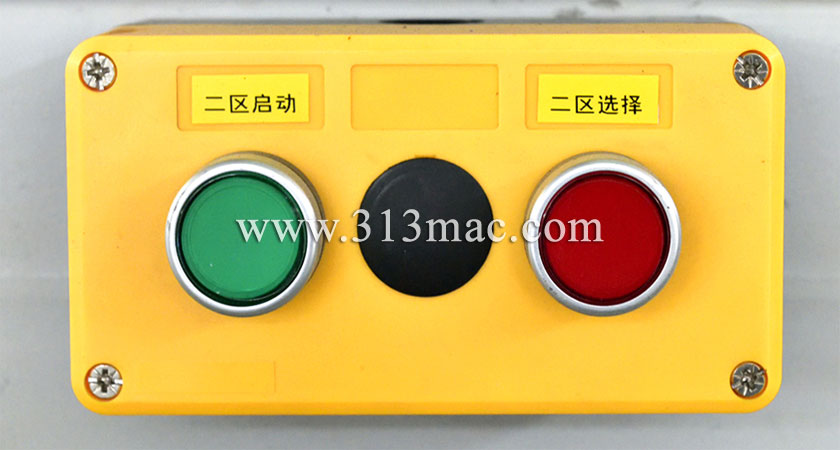

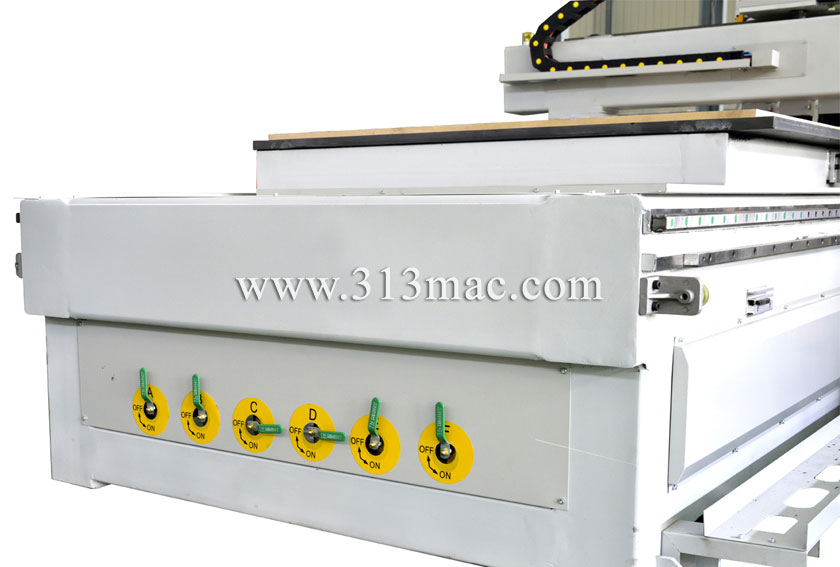

Area control buttons

Area control buttons

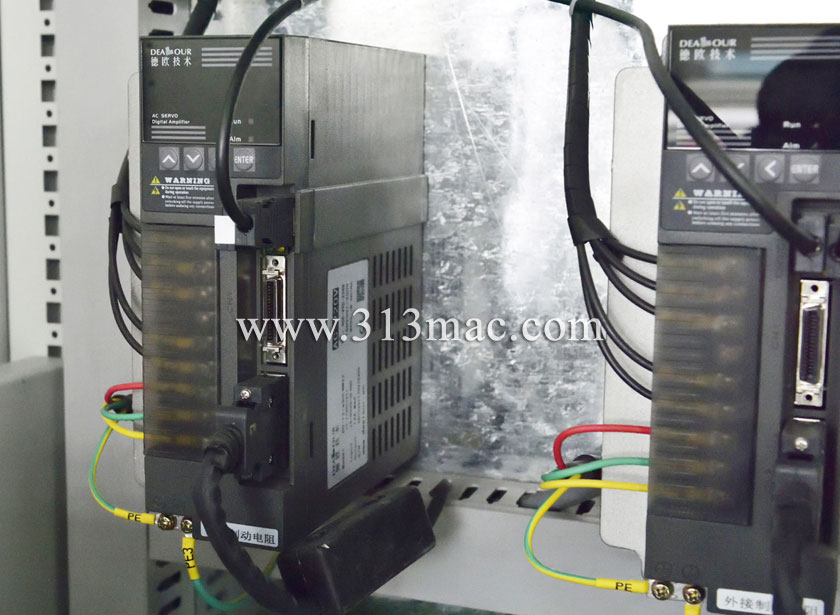

Pure copper servo motor

Pure copper servo motor

Imported guide rail rack

Imported guide rail rack

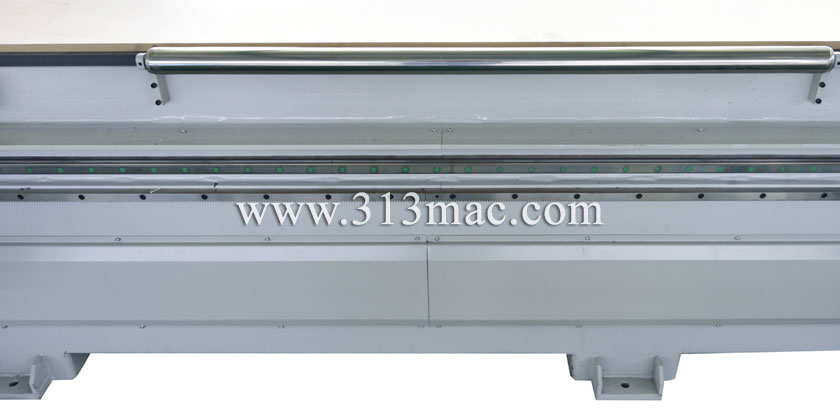

Heavy body

Heavy body

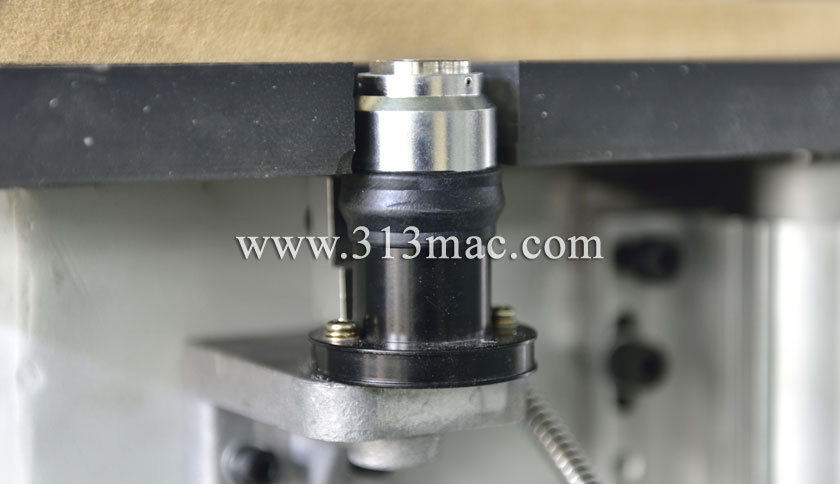

High precision automatic tool setting instrument

High precision automatic tool setting instrument

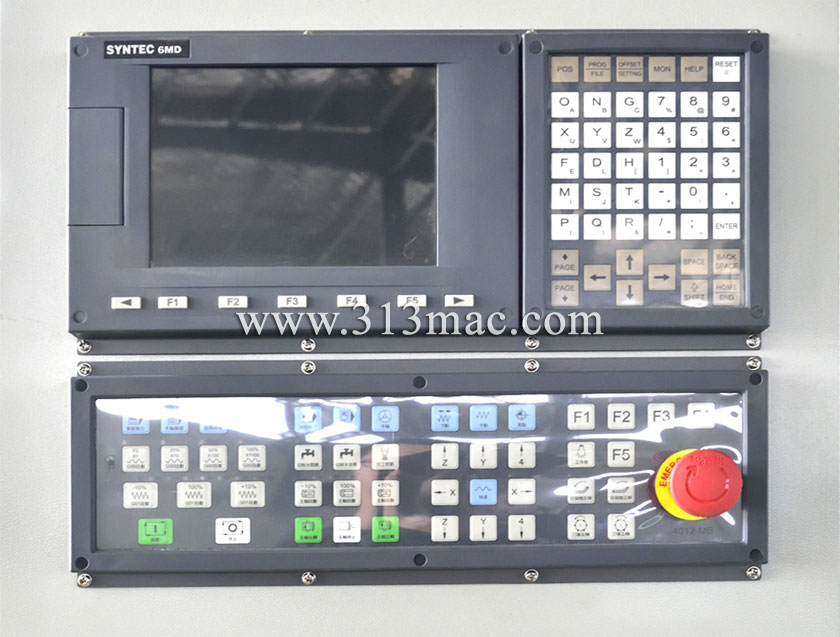

New generation system6MD

New generation system6MD

Our Company

Qingdao Three One Three Machinery Co., Ltd. is a national high-tech enterprise dedicated to providing global customers with a series of products such as CNC Router, Precision Panel Saw, Automatic Edge Banding Machine, Laser Side Hole Machine, Woodworking Drilling Machine and so on.
Sanysan Machinery has 3 production lines, which can produce hundreds of orders at the same time. Product design and production technology originated from advanced philosophy at home and abroad. Industrial automation depends on professional solutions in the field of CNC.
We always adhere to the spirit of continuous innovation and pursuit of excellence, and are committed to making global CNC machining solutions simpler. At the same time, it is devoted to high-quality and high-efficiency research and development thinking, and has successively launched various mechanical automation units to replace manpower with machines, in order to meet the needs of Industry 4.0.
Over the years, 313 machinery and equipment have been exported to more than 70 countries and regions in Europe, Southeast Asia, the Middle East, and Australia, and have a good reputation and market share.

CNC Router

Packing & Delivery

Delivery

FAQ
Q: How about the after-sales service?
A: 1. We can provide free training in our company. 2. We can remotely video assist customers to debug the machine at any time 3. If you need, our engineers can provide service for the machine overseas. But you need to pay air ticket and hotel for our engineer.
Q: What about the warranty?
A: 1 year warranty for all machines. Lifetime maintenance.
Q: What should I do when I have some problems or questions?
A: Please do not hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If something goes wrong with your machine, our worker will be responsible for his mistake. We will solve your problem.
Q: Which type of machine is best for me?
A: Please tell us your material, thickness, size and business industry. We will choose the suitable machine model for you.

If the machine is not suitable for your workpiece, please let us know the following information:
1) What kind of functionality will you need? Automatic tool setting, automatic labeling, one-key loading and unloading
2) Dimensions of the workpiece (the length, width and height of the largest workpiece, the length, width and height of the smallest workpiece?)
3) What is the size of the largest and smallest workpiece?
According to your information, we will custom design the most suitable machine for you.
