MJ6132S Table Panel Saw

MJ6132S Table Panel Saw

MJ6132S Table Panel Saw Video

Machine Features:

Electric lifting for main saw and scoring saw / Electric tilting / Digital display for angle and all rulers
Internal structure of linear guide, stable and high cutting precision.
Sliding table with european base and step-by-step locks, greatly improving work efficiency.
Fine-tuning the mold base.

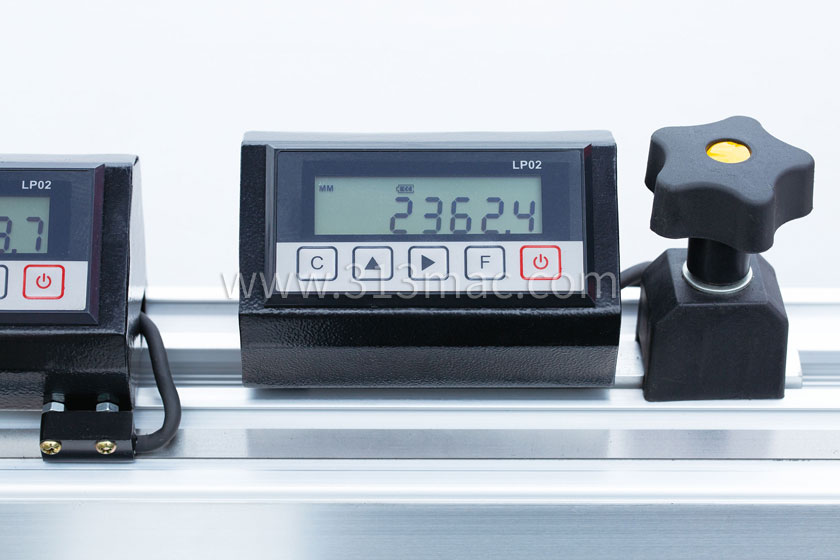

Digital reader

Digital reader

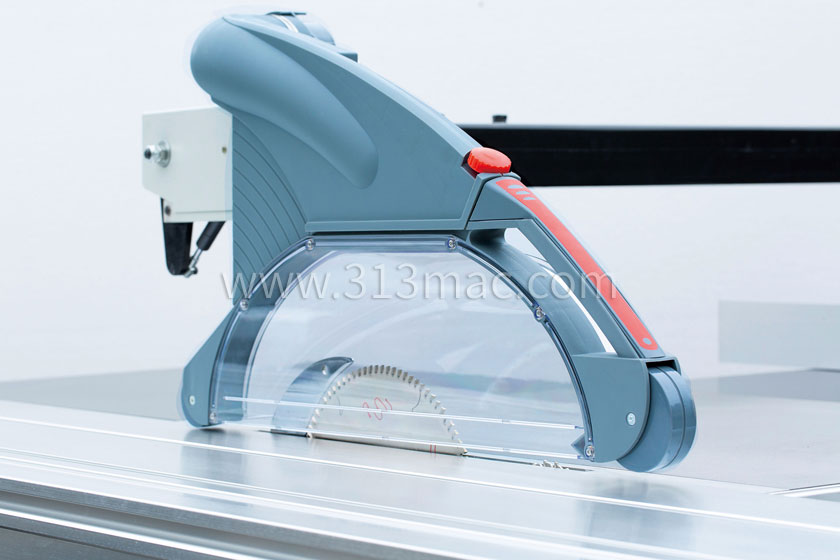

Dust cover

Dust cover

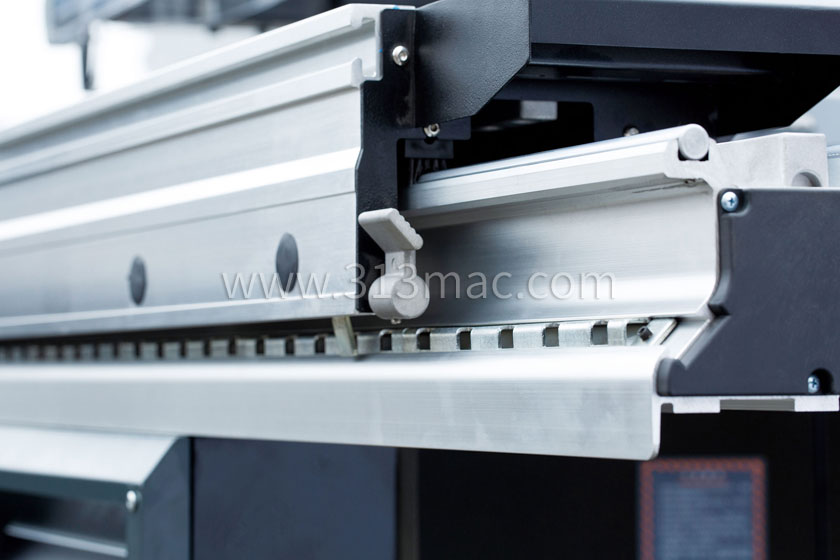

Step by step locking device

Step by step locking device

Specification:
Model MJ6132S
Sliding Table Dimension 3200*395mm
Main Saw Diameter 300mm
Main Saw Blade Diameter Maximum 350mm
Main Saw Bore Diameter 30mm
Max. Cutting Height With Bade at 90 80/100mm(φ300/350)
Max. Cutting Height With Bade at 45 50/70mm(φ300/350)
Main Motor Power 5.5KW
Main Blade Speed 4000/6000RPM
Scorning Saw Blade Diameter 120mm
Scorning Saw Bore Diameter 20mm
Scorning Saw Motor Power 1.1KW
Scorning Blade Speed 8000RPM
Max. Cutting Width 1250mm
Max. Cutting Length 3100mm
Blade Tilting Adjustment 0-45°
Dimension 3250*3450*900mm
G. W. 900KG

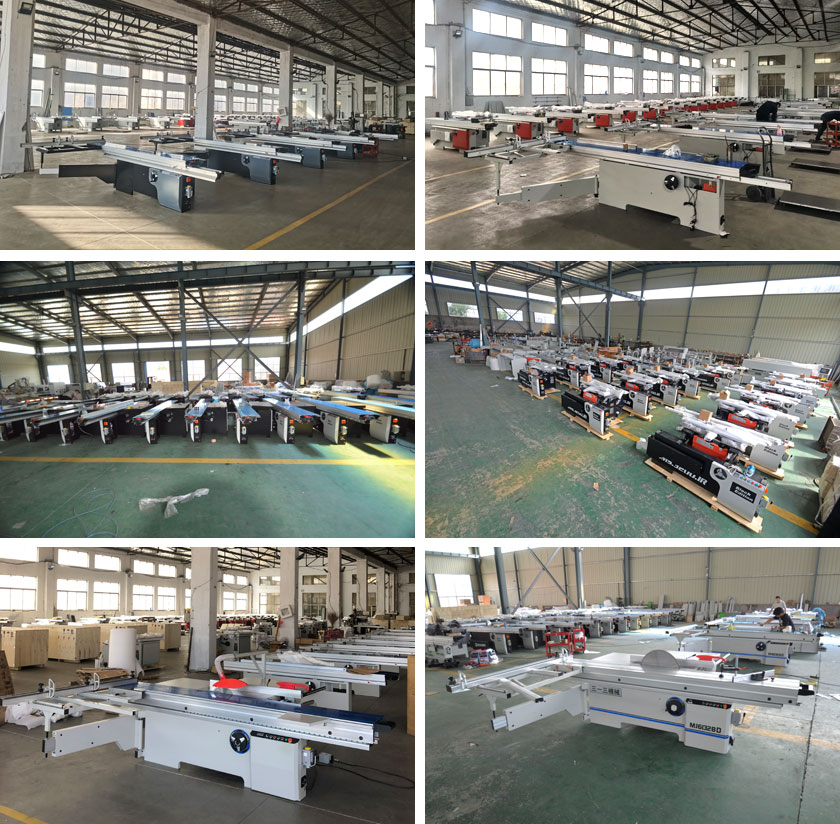

Our Company

Qingdao Three One Three Machinery Co., Ltd. is a national high-tech enterprise dedicated to providing global customers with a series of products such as CNC Router, Precision Panel Saw, Automatic Edge Banding Machine, Laser Side Hole Machine, Woodworking Drilling Machine and so on.
Sanysan Machinery has 3 production lines, which can produce hundreds of orders at the same time. Product design and production technology originated from advanced philosophy at home and abroad. Industrial automation depends on professional solutions in the field of CNC.
We always adhere to the spirit of continuous innovation and pursuit of excellence, and are committed to making global CNC machining solutions simpler. At the same time, it is devoted to high-quality and high-efficiency research and development thinking, and has successively launched various mechanical automation units to replace manpower with machines, in order to meet the needs of Industry 4.0.
Over the years, 313 machinery and equipment have been exported to more than 70 countries and regions in Europe, Southeast Asia, the Middle East, and Australia, and have a good reputation and market share.

CNC Router

Packing & Delivery

Delivery

FAQ

Q: How about the after-sales service?
A: 1. We can provide free training in our company. 2. We can remotely video assist customers to debug the machine at any time 3. If you need, our engineers can provide service for the machine overseas. But you need to pay air ticket and hotel for our engineer.
Q: What about the warranty?
A: 1 year warranty for all machines. Lifetime maintenance.
Q: What should I do when I have some problems or questions?
A: Please do not hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If something goes wrong with your machine, our worker will be responsible for his mistake. We will solve your problem.
Q: Which type of machine is best for me?
A: Please tell us your material, thickness, size and business industry. We will choose the suitable machine model for you.

If the machine is not suitable for your workpiece, please let us know the following information:
1) What kind of functionality will you need? 45 ° cutting, 90 ° cutting, High performance touch screen, Electric middle fence, Digital display, Double control switch, Electric lifting for main saw and scoring saw, Electric tilting, Digital display for angle and all rulers, Sliding table with european base and step-by-step locks Or other functions, Support customization.
2) Dimensions of the workpiece (Sheet Thickness, Sheet Width, Sheet Length?)
3) What is the size of the largest and smallest workpiece?
According to your information, we will custom design the most suitable machine for you.
