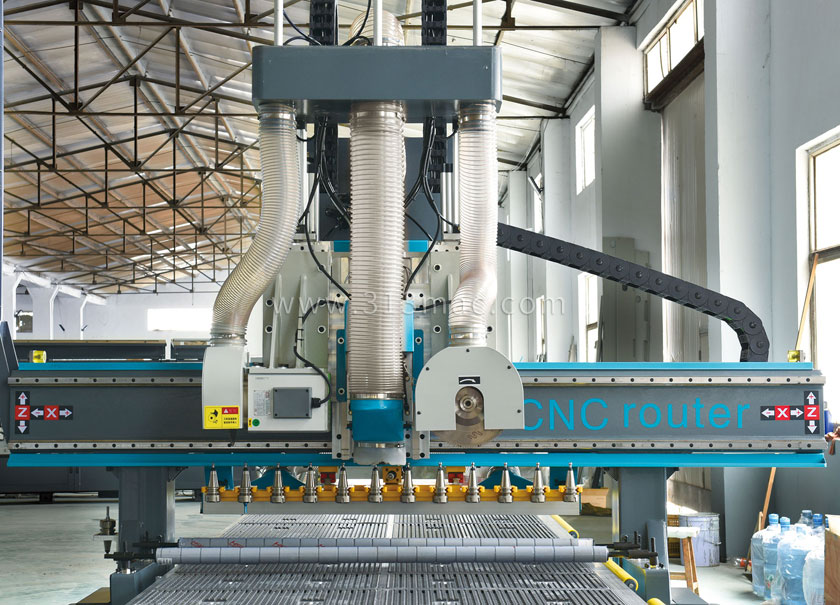

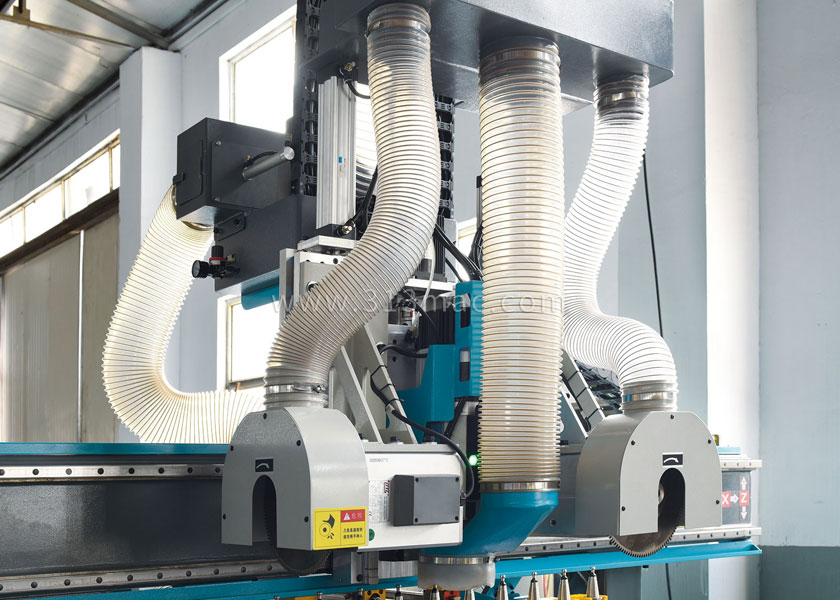

Double cutting blades
Double cutting blades

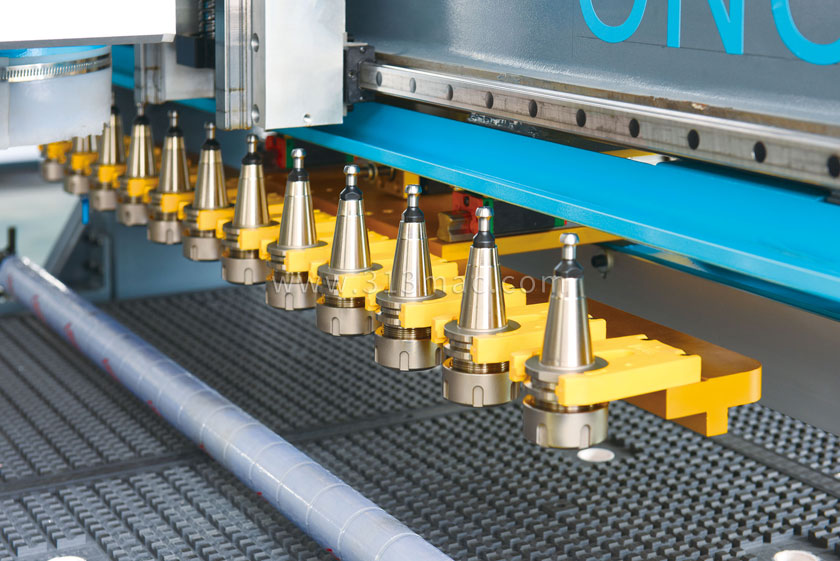

l2pcs of serw automatic tool
Model | SYS-S12A |
Working area | 1300*6000*200mm |
Spindle power | CC air-cooling 9KW ATC |
Inverter | SINEE11KW |
Drive system | Leadshine Servo 1.5KW |
Control system | LNC system |
Cutting motor | 5.5kw * 2 |
Blade diameter | φ255mm |
Max no load speed | 80m/min |
Max working speed | 25m/min |
Reposiion accuracy | ±0.01mm |
Vacuum pump | 11KW |
Table structure | Vacuum Absorption |
Rail | 台湾龙玛 |
Max Tool Holder Dia | φ12.7mm |
Dust Collector | 5.5KW |
Air Pressure | 0.6-0.8Mpa |
Working Voltage | AC380V/3PH/50Hz |
Dimension | 1300*6000*200mm |
Weight | 4500KG |
Qingdao Three One Three Machinery Co., Ltd. is a national high-tech enterprise dedicated to providing global customers with a series of products such as CNC Router, Precision Panel Saw, Automatic Edge Banding Machine, Laser Side Hole Machine, Woodworking Drilling Machine and so on.
Sanysan Machinery has 3 production lines, which can produce hundreds of orders at the same time. Product design and production technology originated from advanced philosophy at home and abroad. Industrial automation depends on professional solutions in the field of CNC.
We always adhere to the spirit of continuous innovation and pursuit of excellence, and are committed to making global CNC machining solutions simpler. At the same time, it is devoted to high-quality and high-efficiency research and development thinking, and has successively launched various mechanical automation units to replace manpower with machines, in order to meet the needs of Industry 4.0.
Over the years, 313 machinery and equipment have been exported to more than 70 countries and regions in Europe, Southeast Asia, the Middle East, and Australia, and have a good reputation and market share.
If the machine is not suitable for your workpiece, please let us know the following information:
1) What kind of functionality will you need? Automatic tool setting, automatic labeling, one-key loading and unloading
2) Dimensions of the workpiece (the length, width and height of the largest workpiece, the length, width and height of the smallest workpiece?)
3) What is the size of the largest and smallest workpiece?
According to your information, we will custom design the most suitable machine for you.
