Product Description:
1.Applicable Products: MDF, particleboard, wood-based panels, ABS panels,PVC panels, plexiglass, solid wood and other wood structure and hardness similar to the plate.
2.How it works: Hand move the mobile workbench before and after the move to achieve the sawing process, scribe saw sawing in advance, the main saw blade can be used to carry out variable speed sawing.
3.To achieve the effect: Manual and easy to feed when the labor-saving, high precision, access to good quality sawing.

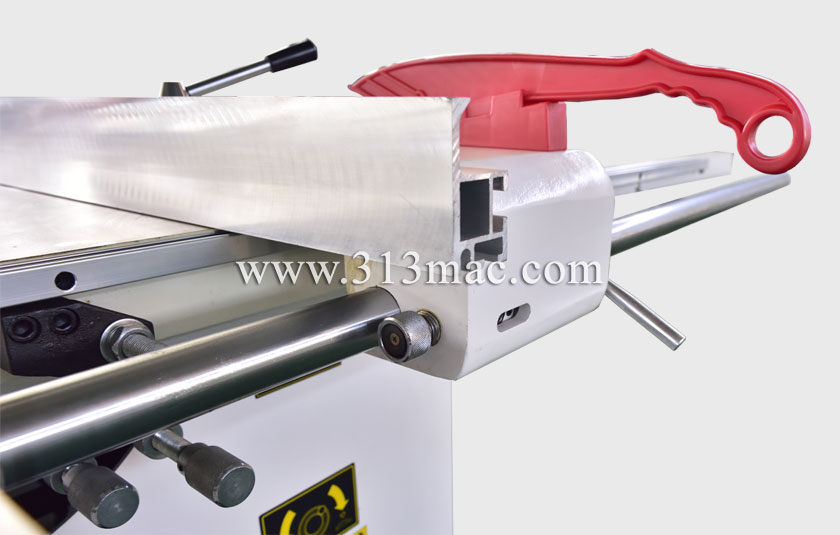

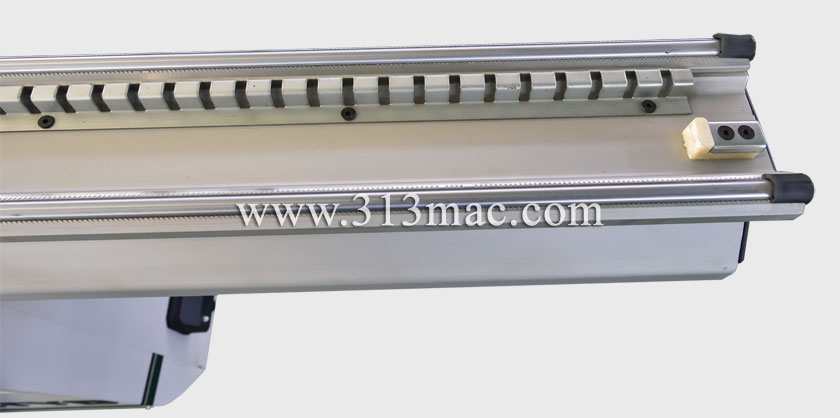

4.Structural advantages: Mobile workbench guide rail with high strength extruded aluminum alloy, high strength, non-deformation, chrome rod structure, high positioning accuracy, table surface oxidation treatment, beautiful wear-resistant.
Technical Data:
| Dimensions Sliding Table |
3200×375mm |
| Maximum sawing length |
3200mm |
| Maximum sawing width |
1250mm |
| Saw Blade Diameter |
300 mm（φ250-φ300） |
| Liftimg way |
80mm |
|
45°Maximum sawing thickness |
55mm |
| Spindle speed |
4000/6000rpm |
| Spindle diameter |
30mm |
| Tiling Saw Blade |
0-45° |
| Main Motor Power |
4kw（可选5.5kw） |
| Scribing blade specifications |
∮120mm |
| Scribing blade speed |
8000r/min |
| Shaft diameter |
20mm |
| weight |
0.75kw（可选1.1kw） |
| Scoring power |
700kg |
| Wooden boxed weight |
750kg |
|
Dimensions |
3250×3150×900mm |
