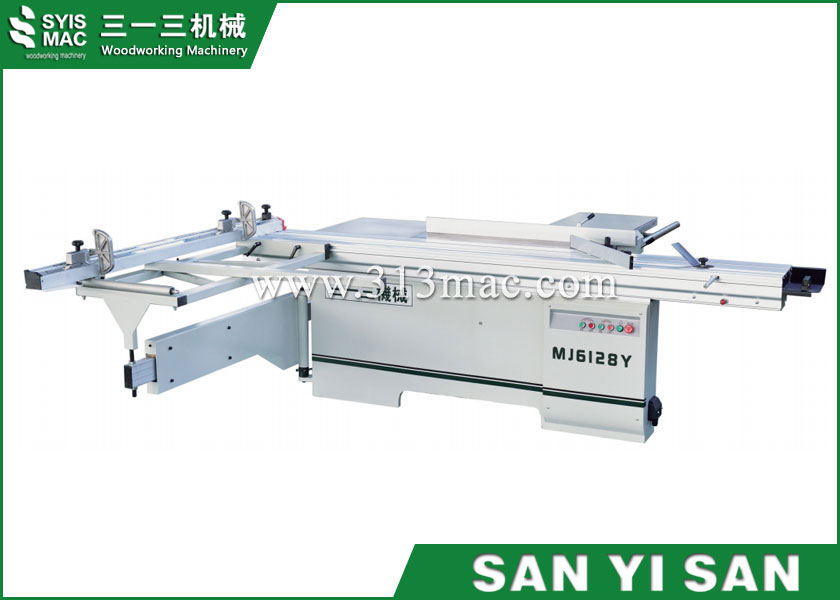

MJ6128Y Precision Panel Saw

  • MJ6128Y Precision Panel Saw
MJ6128Y Precision Panel Saw

MJ6128Y Precision Panel Saw

Product Description:

1.Applicable Products: MDF, particleboard, wood-based panels, ABS panels,PVC panels, plexiglass, solid wood and other wood structure and hardness similar to the plate.
2.How it works: Hand move the mobile workbench before and after the move to achieve the sawing process, scribe saw sawing in advance, the main saw blade can be used to carry out variable speed sawing.
3.To achieve the effect: Manual and easy to feed when the labor-saving, high precision, access to good quality sawing.
4.Structural advantages: Mobile workbench guide rail with high strength extruded aluminum alloy, high strength, non-deformation, chrome rod structure, high positioning accuracy, table surface oxidation treatment, beautiful wear-resistant.

Technical Data:

Dimensions Sliding Table

2800×320mm

Maximum sawing length

2800mm

Maximum sawing width

1250mm

Saw Blade Diameter

300 mm(φ250-φ315)

Liftimg way

70mm

Spindle speed

4000/6000rpm

Spindle diameter

30mm

Tiling Saw Blade

90°

Main Motor Power

4kw(可选5.5kw)

Scribing blade specifications

∮120mm

Scribing blade speed

8000r/min

Shaft diameter

20mm

weight

0.75kw(可选1.1kw)

Scoring power

700kg

Wooden boxed weight

750kg

Dimensions

2850×3150×900mm


压料板

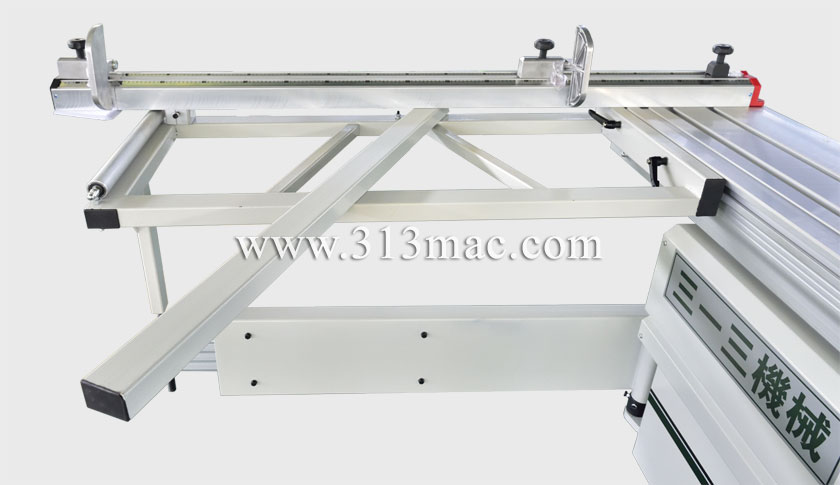

大欧尺

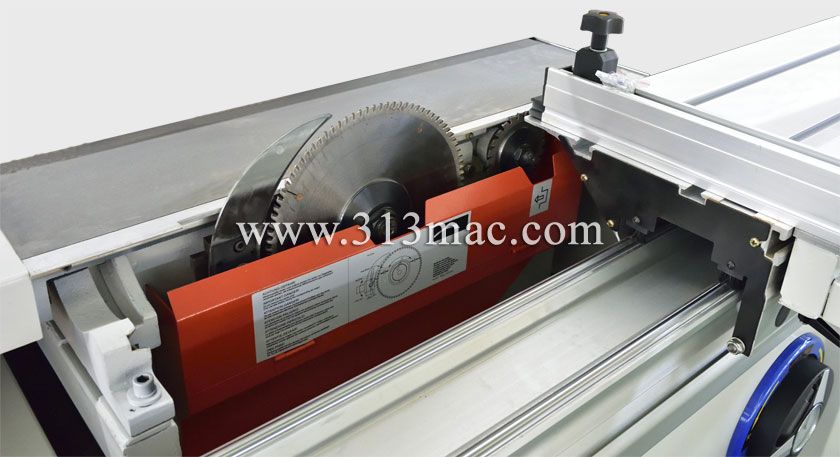

主副锯片

靠模座

大欧尺
