WEIHONG System / Automatic tool changer with 12 pcs different tools / Automatic labeling, one- touch loading and unloading
Air-cooling 9KW spindle with 12pcs of servo tool magazines makes sure of fast changing of tools.
TAIWAN LONGMA 25 rail makes sure of the stability of the machine during producing.
8mm square steel is used on this machine with tempering treatment makes sure sure of the nondeformation of the machine.
Automatic tool setting makes sure the precision of the machine and is very easy to operate for the users.

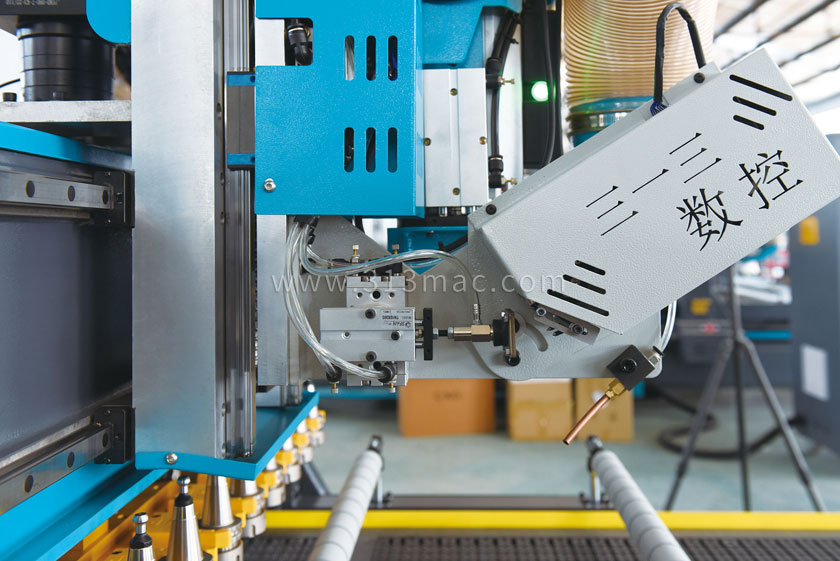

Automatic Labeling

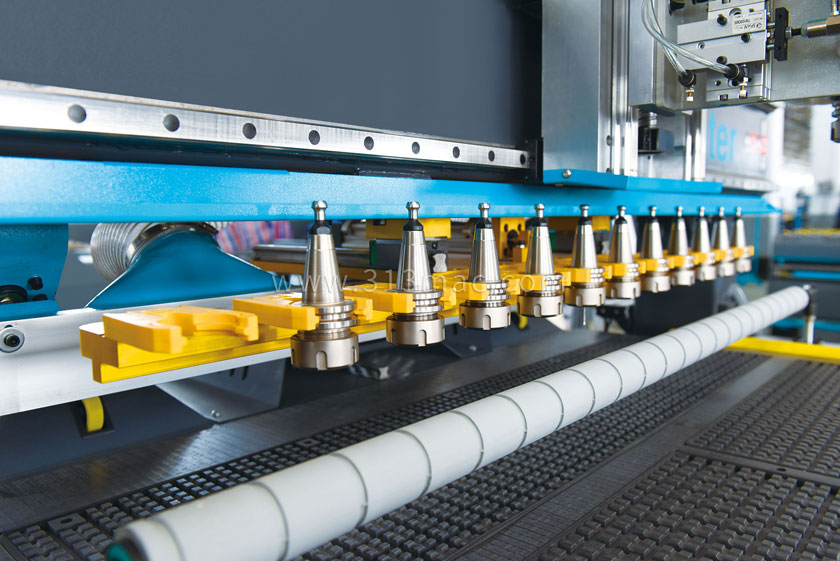

l2pcs of serw automatic tool

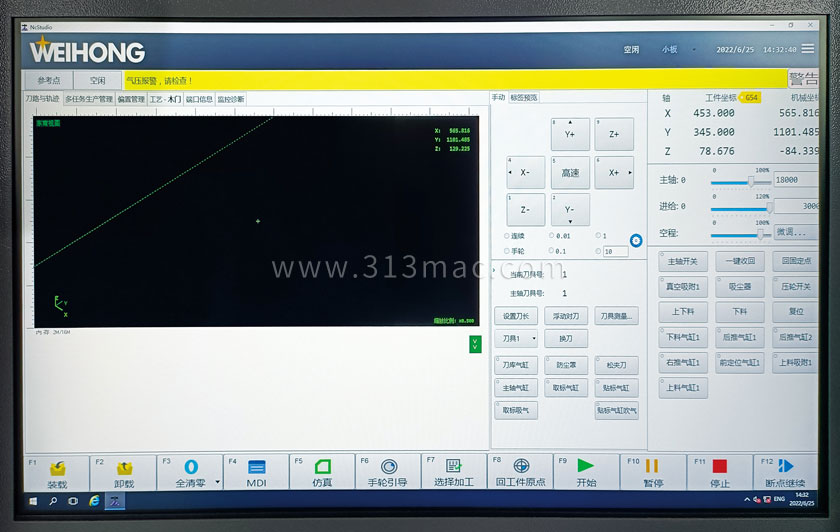

WEIHONG system

Model	SYS-S12
Working area	1300*2800*200mm
Spindle power	CC air-cooling 9KW ATC
Inverter	SINEE 11KW
Drive system	雷赛
Control system	WEIHONG
Max no load speed	80m/min
Max working speed	25m/min
Reposition accuracy	±0.01mm
Vacuum pump	7.5KW
Table structure	Vacuum Absorption
Rail	台湾龙玛
Max Tool Holder Dia	Φ12.7mm
Dust Collector	5.5KW
Air Pressure	0.6-0.8Mpa
Working Voltage	AC380V/3PH/50Hz
Dimension	4200*2800*2300mm
Weight	3700KG

Qingdao Three One Three Machinery Co., Ltd. is a national high-tech enterprise dedicated to providing global customers with a series of products such as CNC Router, Precision Panel Saw, Automatic Edge Banding Machine, Laser Side Hole Machine, Woodworking Drilling Machine and so on.

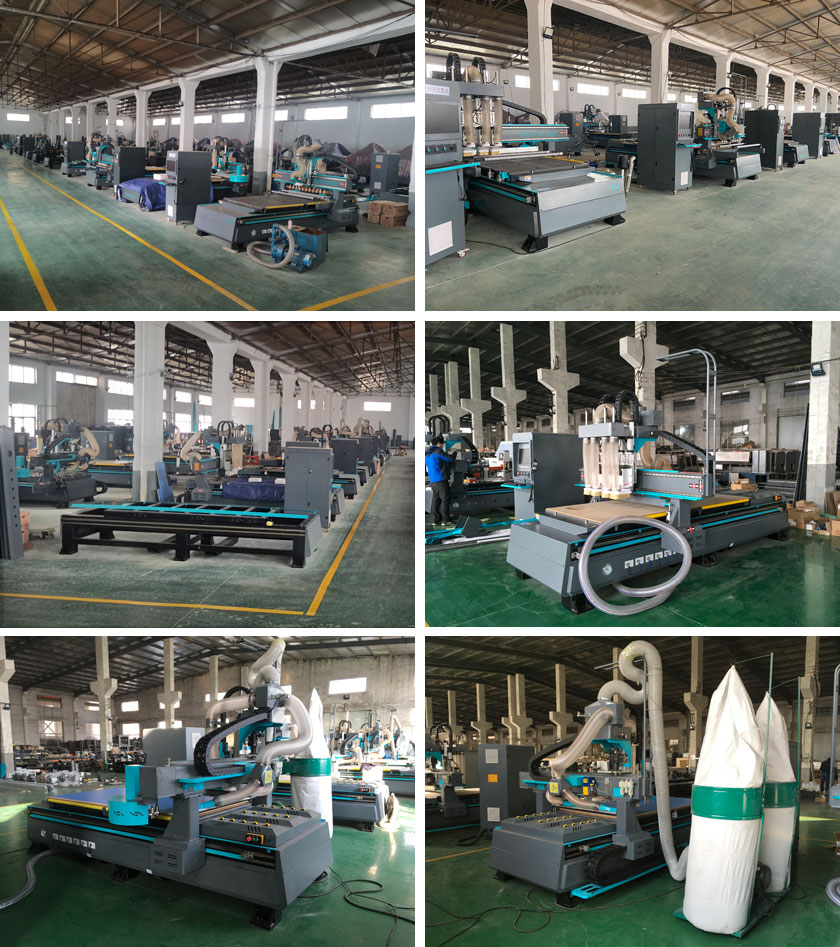

Sanysan Machinery has 3 production lines, which can produce hundreds of orders at the same time. Product design and production technology originated from advanced philosophy at home and abroad. Industrial automation depends on professional solutions in the field of CNC.
We always adhere to the spirit of continuous innovation and pursuit of excellence, and are committed to making global CNC machining solutions simpler. At the same time, it is devoted to high-quality and high-efficiency research and development thinking, and has successively launched various mechanical automation units to replace manpower with machines, in order to meet the needs of Industry 4.0.
Over the years, 313 machinery and equipment have been exported to more than 70 countries and regions in Europe, Southeast Asia, the Middle East, and Australia, and have a good reputation and market share.

Q: How about the after-sales service?
A: 1. We can provide free training in our company. 2. We can remotely video assist customers to debug the machine at any time 3. If you need, our engineers can provide service for the machine overseas. But you need to pay air ticket and hotel for our engineer.
Q: What about the warranty?
A: 1 year warranty for all machines. Lifetime maintenance.
Q: What should I do when I have some problems or questions?
A: Please do not hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If something goes wrong with your machine, our worker will be responsible for his mistake. We will solve your problem.
Q: Which type of machine is best for me?
A: Please tell us your material, thickness, size and business industry. We will choose the suitable machine model for you.

If the machine is not suitable for your workpiece, please let us know the following information:
1) What kind of functionality will you need? Automatic tool setting, automatic labeling, one-key loading and unloading
2) Dimensions of the workpiece (the length, width and height of the largest workpiece, the length, width and height of the smallest workpiece?)
3) What is the size of the largest and smallest workpiece?
According to your information, we will custom design the most suitable machine for you.
