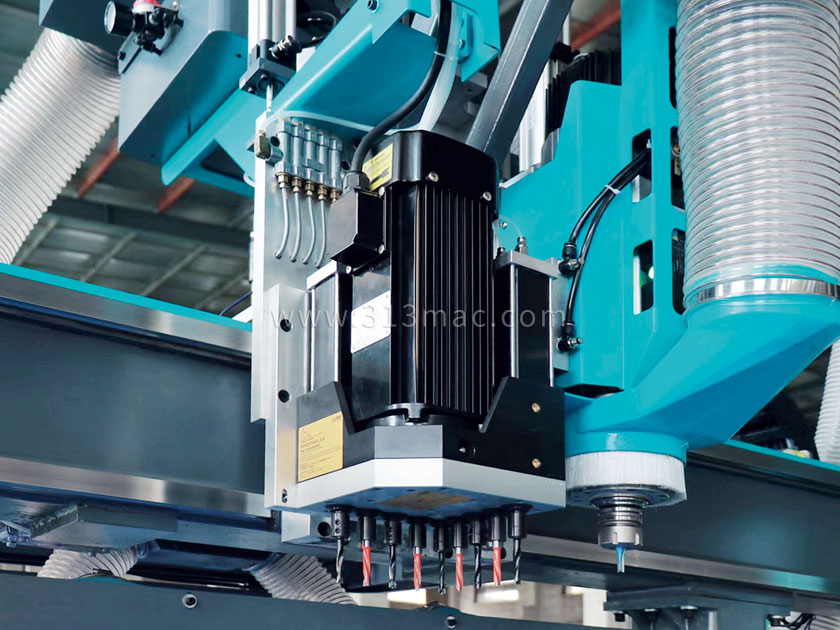

SYNTEC System + SYNTEC Servo / Automatic tool changer with 20 pcs different tools / 5+4 Drilling holder makes sure of efficient drilling / Heavy machine body makes the machine sturdy and durable
Air-cooling 9KW spindle with 20 pcs of servo tool magazines makes sure of fast changing of tools.

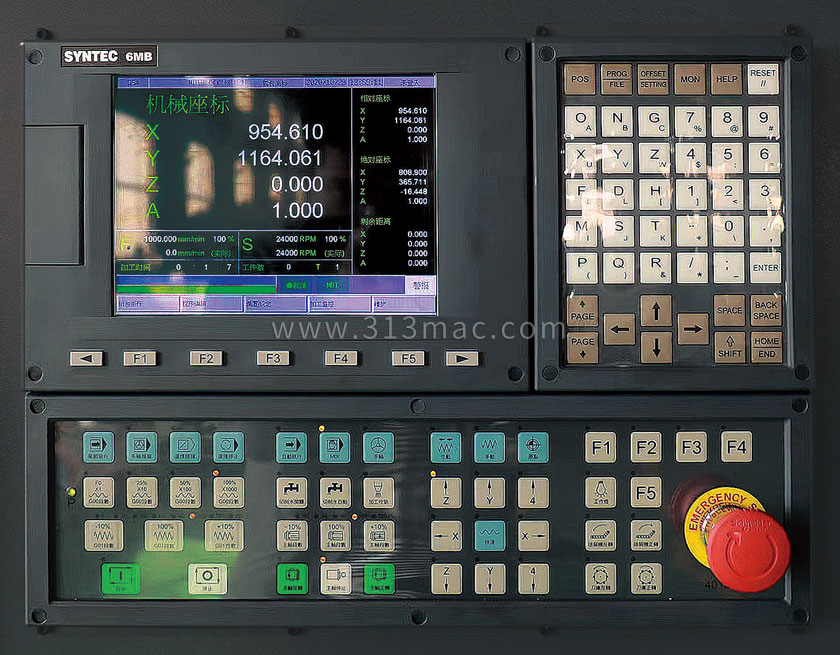

SYNTEC control system realize fast data processing rate which is easy to operate.
Germany SLM 25 rail makes sure of the stability of the machine during producing.
8mm square steel is used on this machine with tempering treatment makes sure of the non-deformation of the machine.
Automatic tool setting makes sure the precision of the machine and is very easy to operate for the users.

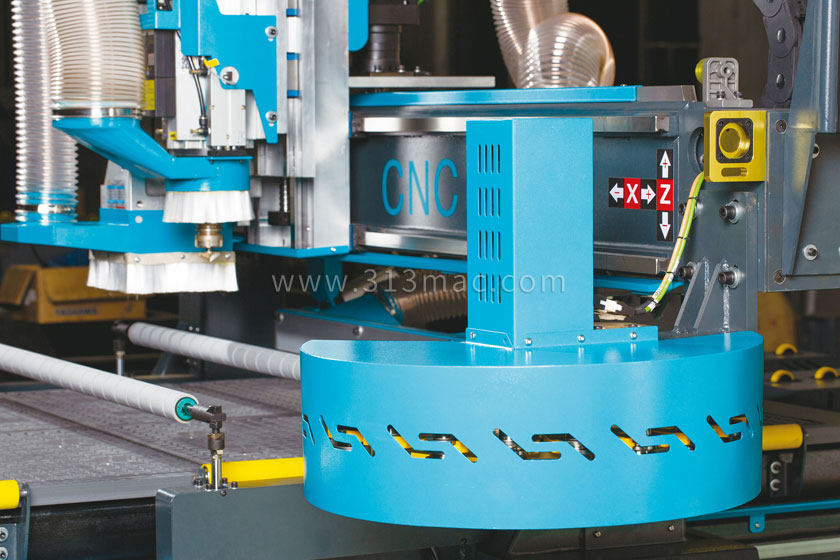

Realshot dose-up machine parts

20-positions Servo Auto-changer

Model	SYS-S20
Working area	1300*2800*200mm
Spindle power	CC air-cooling 9KW ATC
Inverter	SINEE 11KW
Drive system	SYNTEC
Control system	60W-E SYNTEC 60W-E
Max no load speed	80m/min
Max working speed	25m/min
Reposition accuracy	±0.01mm
Vacuum pump	7.5KW
Table structure	Vacuum Absorption
Rail	SLM25 方轨
Max Tool Holder Dia	Φ12.7mm
Dust Collector	5.5KW
Air Pressure	0.6-0.8Mpa
Working Voltage	AC380V/3PH/50Hz
Dimension	4400*2500*2300mm
Weight	3800KG

SYS-S20 20 Tools CNC Router With Drilling Holder

Qingdao Three One Three Machinery Co., Ltd. is a national high-tech enterprise dedicated to providing global customers with a series of products such as CNC Router, Precision Panel Saw, Automatic Edge Banding Machine, Laser Side Hole Machine, Woodworking Drilling Machine and so on.
Sanysan Machinery has 3 production lines, which can produce hundreds of orders at the same time. Product design and production technology originated from advanced philosophy at home and abroad. Industrial automation depends on professional solutions in the field of CNC.
We always adhere to the spirit of continuous innovation and pursuit of excellence, and are committed to making global CNC machining solutions simpler. At the same time, it is devoted to high-quality and high-efficiency research and development thinking, and has successively launched various mechanical automation units to replace manpower with machines, in order to meet the needs of Industry 4.0.
Over the years, 313 machinery and equipment have been exported to more than 70 countries and regions in Europe, Southeast Asia, the Middle East, and Australia, and have a good reputation and market share.

Q: How about the after-sales service?
A: 1. We can provide free training in our company. 2. We can remotely video assist customers to debug the machine at any time 3. If you need, our engineers can provide service for the machine overseas. But you need to pay air ticket and hotel for our engineer.
Q: What about the warranty?
A: 1 year warranty for all machines. Lifetime maintenance.
Q: What should I do when I have some problems or questions?
A: Please do not hesitate to contact us, we will reply you as soon as possible.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If something goes wrong with your machine, our worker will be responsible for his mistake. We will solve your problem.
Q: Which type of machine is best for me?
A: Please tell us your material, thickness, size and business industry. We will choose the suitable machine model for you.

If the machine is not suitable for your workpiece, please let us know the following information:
1) What kind of functionality will you need? Automatic tool setting, automatic labeling, one-key loading and unloading
2) Dimensions of the workpiece (the length, width and height of the largest workpiece, the length, width and height of the smallest workpiece?)
3) What is the size of the largest and smallest workpiece?
According to your information, we will custom design the most suitable machine for you.
