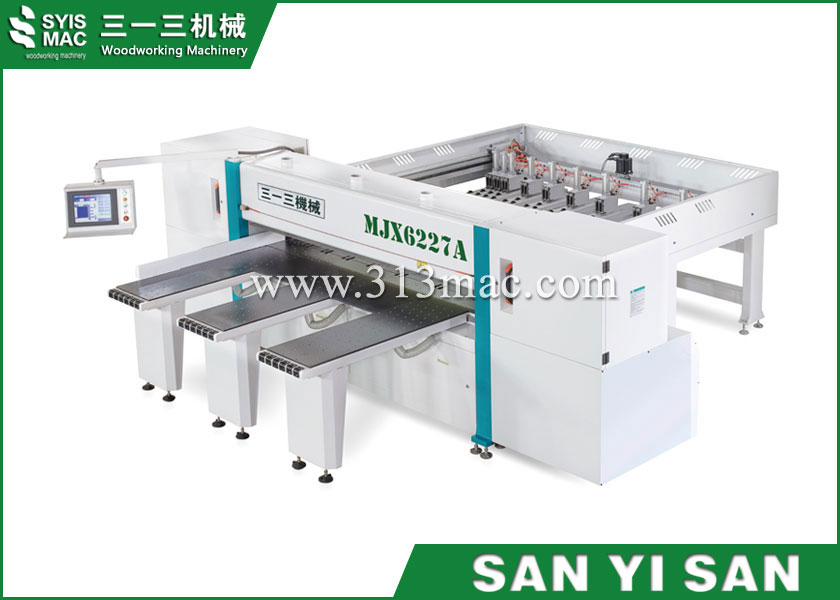

Product Description:
1.Applicable Products: MDF, MDF, particleboard, gypsum board, plexiglass acrylic board, PS board, light guide plate, solid wood board and so on.

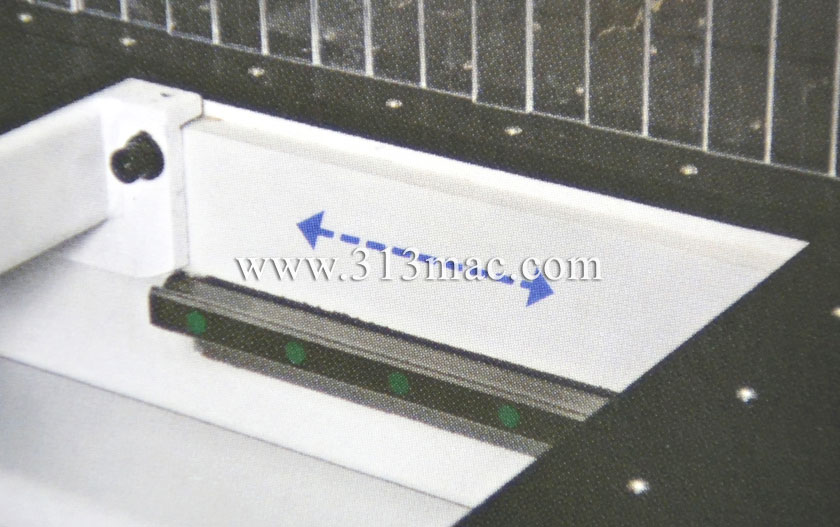

2.Working principle: CNG panel saw configuration automatic feed feeding manipulator feeding, high precision servo control feeding accuracy,electronic ruler positioning compensation, linear precision guide to ensure the accuracy of sawing.

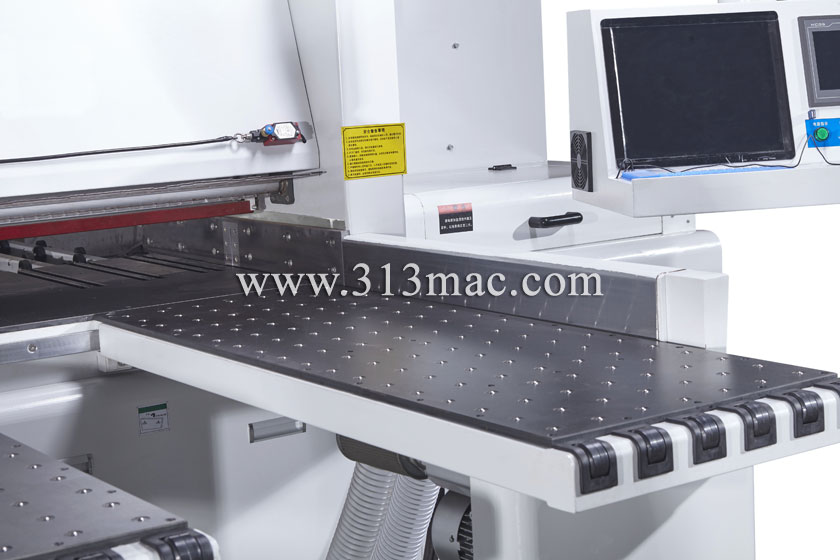

3.Achieve results: effective protection of the sawing effect of the end, greatly improving work efficiency. Solid and solid body structure, cutting accuracy of + 0.02mm. Before feeding the platform, after loading platform to improve work efficiency
4.Structural Advantages: The sawing truck adopts unilateral vertical guideway design, the center is on the vertical plane, and the rack adopts high-strength special materials to ensure the stability and improve the service life of the equipment.
Technical Data:
Cutting length | 2700/3300mm |
Cutting thickness | ll0mm |
Main blade diameter | ∮405mm |
Main blade shaftd ameter | ∮80 mm |
Main blade shaft speed | 4800rpm |
scoring saw blade diameter | ∮180mm |
Scoring saw blade diameter | ∮60mm |
scoring saw shaft speed | 6500rpm |
Saw carrige forward speed | 0-100m/min |
Saw carrige backward speed | 70m/min |
Saw carrige serve drive power | 1.5kw |
Main saw motor power | 16/18.5kw |
Scoring saw motor power | 2.2kw |
Finger gripper feeding | 1.5kw |
High pressure air fan power | 4kw |
Air consuption | 5-7kg/cm2 |
Total power | 25.2/27.7kw |
Finger gripper numbers | 9pcs |
Min width of finger gripper | 25mm |
Weight | 5000kg/6000kg |
Dimensions | 5200*5850*1750 / 5200*5850*1750mm |
